Why Choose waveguard connect
Universal Compatibility
Compatible with all major clinical EEG systems
Enhanced Comfort

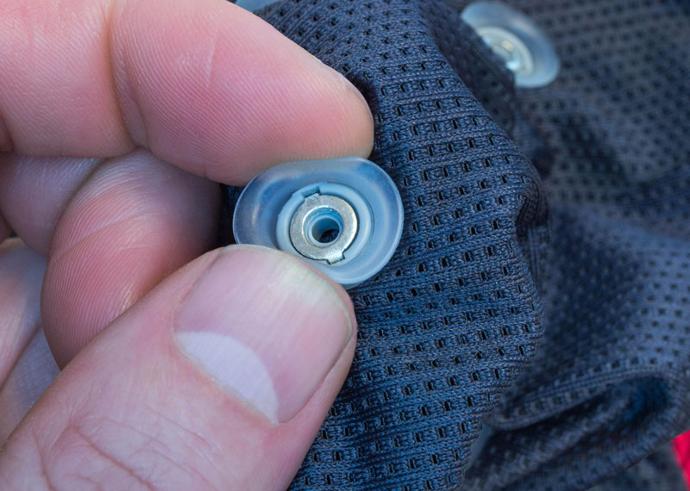

Patient comfort is ensured during long recordings with soft silicone cups on the electrodes
Optimal Signal Quality
Experience optimal signal quality with reliable tin-based electrodes
User-Friendly Design
User-friendly and low maintenance for effortless operation
Versatile Fit
A few sizes fit all design ensures full coverage for various adult head circumferences
Quick Size Selection

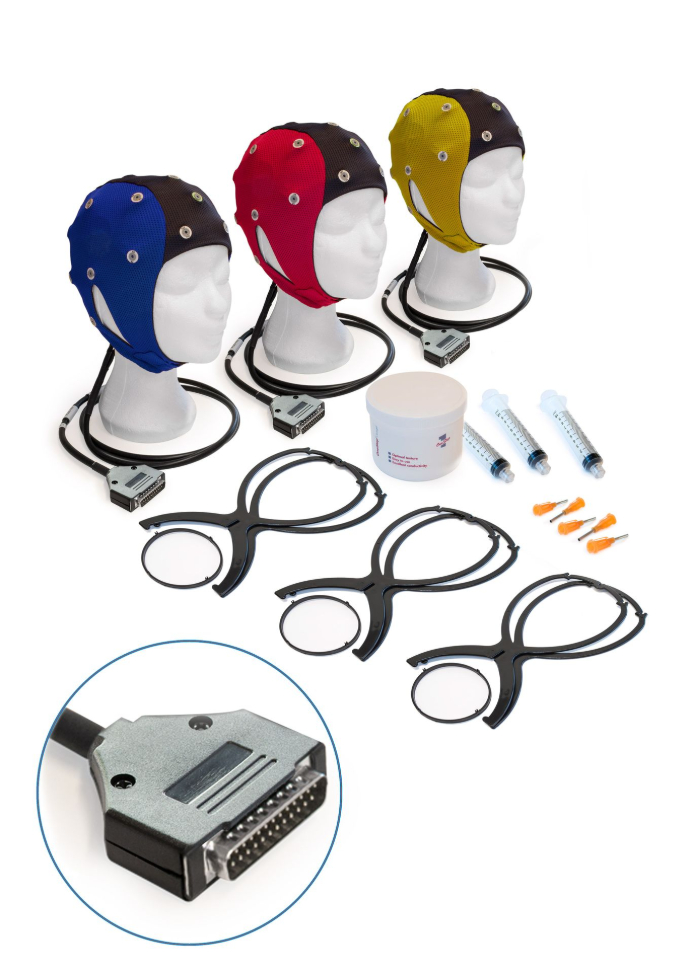

Distinct colored fabrics allow for quick selection of the right cap size (from baby to large)
Publications
Mobile EEG reveals functionally dissociable dynamic processes supporting real-world ambulatory obstacle avoidance: Evidence for early proactive control
Magda Mustile, Dimitrios Kourtis, Simon Ladouce, Gemma Learmonth, Martin G. Edwards, David I. Donaldson, Magdalena Ietswaart.
Read More
High-density EEG in current clinical practice and opportunities for the future
Stoyell, Sally M.; Wilmskoetter, Janina; Dobrota, Mary-Ann; Chinappen, Dhinakaran M.; Bonilha, Leonardo; Mintz, Mark; Brinkmann, Benjamin H.; Herman, Susan T.; Peters, Jurriaan M.; Vulliemoz, Serge; Seeck, Margitta; Hämäläinen, Matti S.; Chu, Catherine J.
Read More
Response inhibition in problematic social network sites use: an ERP study
Tania Moretta, Giulia Buodo
Read MoreEnhanced Features
Do you have questions or need an offer?
DISCLAIMER: All waveguard™ EEG caps and accessories are CE marked medical devices, according to MDR (EU) 2017/745, CE class I and are registered in the ARTG in compliance with the Australian TG(MD)R. waveguard family of products consist of waveguard original, waveguard connect, waveguard touch, waveguard net caps and waveguard accessories.
Information intended for users in USA/Canada: waveguard original and waveguard connect caps have FDA clearance under 510(k) in the USA and Medical Device License (MDL) issued by Health Canada. waveguard net caps have FDA clearance under 510(k) in the USA. waveguard touch caps are currently for research only in the USA / Canada. IRB approval required for clinical use.
Manufactured by eemagine Medical Imaging Solutions GmbH, Berlin, Germany, ISO 13485 certified. ANT Neuro and eemagine are part of the neuromotion group.
For more information about waveguard EEG caps and accessories and the regulatory status in your country, contact us.
FAQs

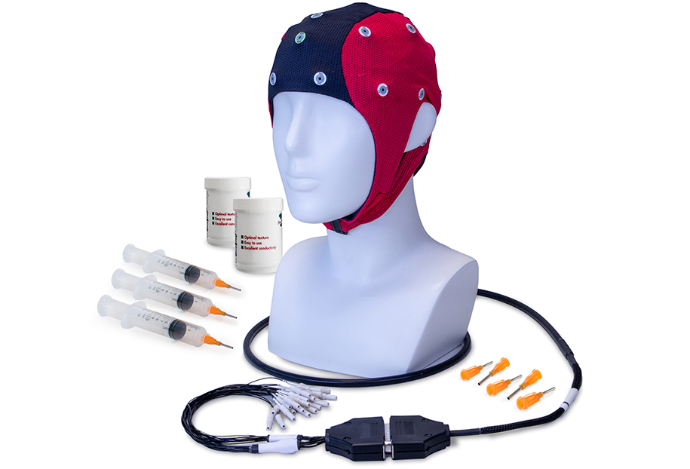

waveguard™ connect is a comfortable, user-friendly EEG cap with tin electrodes, tailored for clinical EEG applications. It is designed for hospitals and institutes that require patient comfort, high-quality clinical EEG recordings, and efficient workflows for accurate diagnosis.
waveguard™ connect combines universal compatibility with major clinical EEG systems, optimal signal quality from reliable tin electrodes, enhanced patient comfort, and a user-friendly, lowmaintenance design. The disinfectable cap, quick drying times, no loose wires, and quick size selection support efficient clinical EEG workflows and rapid turnaround between patients.
waveguard™ connect is designed for patient comfort during clinical EEG recordings, including long recording sessions. Soft silicone cups on the electrodes help minimise discomfort and pressure points while maintaining reliable electrode-skin contact.
waveguard™ connect uses a small number of cap sizes to provide a versatile fit across different head circumferences. Distinct coloured fabrics allow quick identification and selection of the appropriate cap size, from baby to large adult sizes.
waveguard™ connect is designed to streamline clinical EEG workflows through quick size selection, a user-friendly design, no loose wires, and disinfectable caps with quick drying times. These features simplify preparation, cleaning, and turnaround between patients in busy clinical environments.
waveguard™ connect features a proven design that delivers high-quality clinical EEG recordings with a strong price-to-performance ratio. It is designed for routine clinical recordings where patient comfort, reliable performance, and maximum uptime are important.
waveguard™ connect uses reliable, pure tin electrodes designed for high-quality clinical EEG recordings. The tin electrodes provide reliable signal quality and seamless integration with major clinical EEG systems.
The waveguard™ connect design keeps the wires contained within the cap, with no loose wires exposed. This enhances safety during clinical use and simplifies handling, cleaning, and maintenance.
waveguard™ connect is designed for continuous EEG recordings of up to 24 hours, making it suitable for extended clinical EEG monitoring.

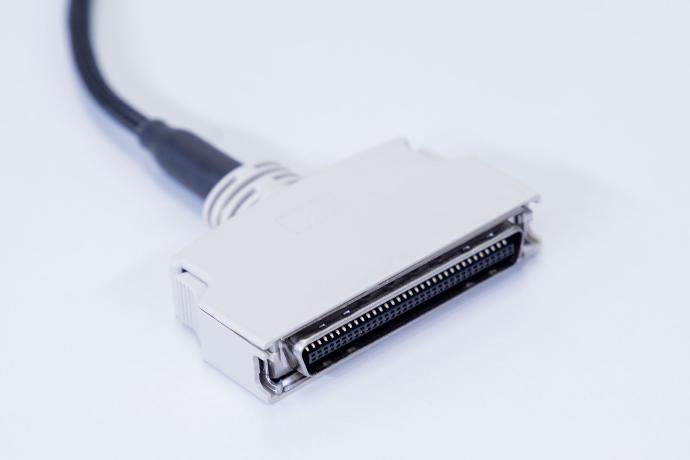

waveguard™ connect is compatible with all major clinical EEG systems and connects easily to systems from Neurosoft, Natus, Nihon Kohden, MediTech, and Micromed. Standard connectors enable integration with a wide range of clinical EEG amplifiers.
waveguard™ connect is available in 21-channel configurations with the standard 10-20 layout and 25-channel configurations with the IFCN extended 10-20 layout. Custom layouts are available on request to meet specific clinical requirements.
waveguard™ connect caps are disinfectable and designed with quick drying times to support hygiene and efficient turnaround between patients. The no-loose-wires design also improves safety and simplifies maintenance.
waveguard™ connect is specified for up to 500 use cycles, with disinfection between patients.
waveguard™ connect is CE marked as a Class I medical device according to MDR (EU) 2017/745 and is registered in the Australian Register of Therapeutic Goods (ARTG) in compliance with the Australian TG(MD)R. In the USA, waveguard™ connect has FDA 510(k) clearance, and in Canada it has a Medical Device License (MDL) issued by Health Canada.
waveguard™ connect comes with a 6 month warranty.
